SKU: 608-



NOTE: ALL RZR Turbo Models, RZR Pro, RS1, XX Select "Plus/Turbo" (Needs clearance for larger calipers)



"Baja Crusher" wheels are made from Heat Treated 6061-T6 Spun Aluminum. They feature billet CNC machined 6061-T6 rings, flanges and centers. These are the strongest wheels on the UTV market. Cast wheels will typically crack or "Shatter" on impact due to cast metals being brittle and porous from the manufacturing process. Our wheels are drastically stronger than a cast wheel but if you do experience a sharp high speed impact they will bend and at least not shatter like a cast wheels. They also typically still hold air if bent letting you get home and not leaving you stranded on the trail! This is the reason racers prefer a non-cast wheel. Our bead-lock rings and receivers are the toughest as well as thickest in the industry at 3/8" thick each! Even with all the added material thickness and strength these wheels are still lighter than most cast wheels!



Features:
-Hand built and designed to your specs. Make it yours.
-Fully Serviceable (This is a True 3 Piece Wheel)
-Heavy duty 3/8" thick billet 6061-T6 CNC Bead Lock Ring.
-Heavy duty 3/8" thick billet 6061-T6 CNC Bead lock Ring Receiver.
-Oversized 8mm Grade 8 Bead Lock Bolts.
-.200" 6061-T6 aluminum heat treated inner and outer halves.
-.600" thick 6061-T6 billet CNC center.
-Built tough yet still lighter than most cast wheels.
-Extremely durable Heat Treated 6061 Aluminum.
-Rolled inner lip for extra strength.
-Powder coated black with your choice of ring color.

Includes:
-Beadlock wheel.
-Beadlock ring your choice of color.
-Grade 8 beadlock ring hardware.
-valve stems.

Easy Tire Mounting - Can be done in your garage
The color you receive is the color in the picture
Warrantied for manufacturing defects for 6 months

Beadlock ring TORQUE SPECS: 14-16 Ft lbs
Billet Center TORQUE SPECS: 8-10 Ft lbs

-HAND BUILT TO ORDER! EST 7-10 business days

CNC finish:



After the Beadlock Rings and Centers are powder-coated we then re-mount it to the CNC and re machine the edges and pockets. See the picture.



Wheel Weights-



15x7 = 17LBS



15x10 = 19LBS



14x7 = 15LBS



14x10 = 16.5LBS



Sizes:

14x6 Offset- 4+2 (4" on the inside of wheel center, 2" on the out side)



15x6 Offset- 4+2 (4" on the inside of wheel center, 2" on the out side)



14x7 Offset- 4+3 (4" on the inside of wheel center, 3" on the out side)



14x7 Offset- 5+2 (5" on the inside of wheel center, 2" on the out side)



15x7 Offset- 4+3 (4" on the inside of wheel center, 3" on the out side)



15x7 Offset- 5+2 (5" on the inside of wheel center, 2" on the out side)



14x8 Offset- 5+3 (5" on the inside of wheel center, 3" on the out side)



15x8 Offset- 5+3 (5" on the inside of wheel center, 3" on the out side)



14x9 Offset- 4+5 (4" on the inside of wheel center, 5" on the out side)



15x9 Offset- 4+5 (4" on the inside of wheel center, 5" on the out side)



14x10 Offset- 5+5 (5" on the inside of wheel center, 5" on the out side)



15x10 Offset- 5+5 (5" on the inside of wheel center, 5" on the out side)

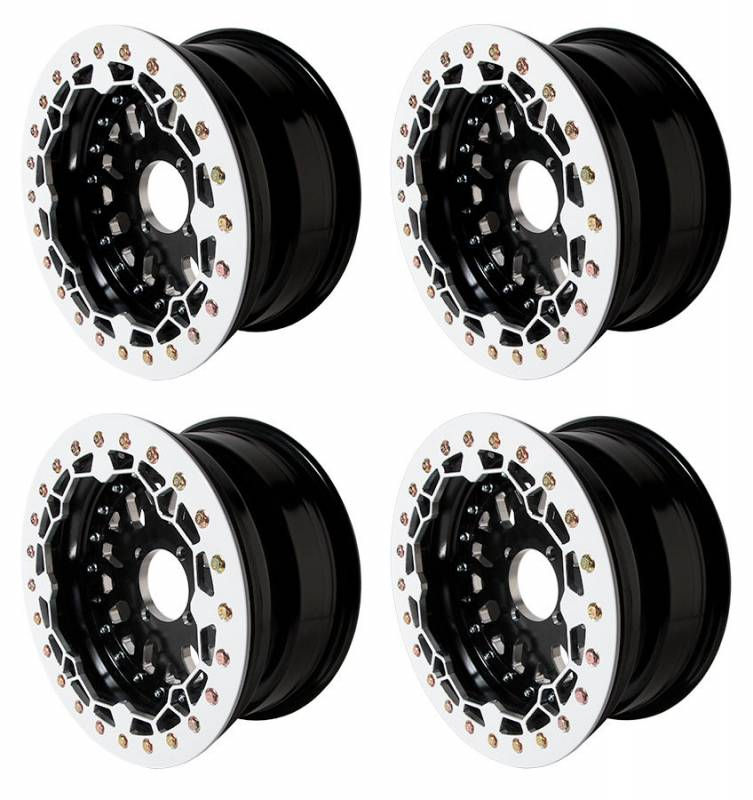

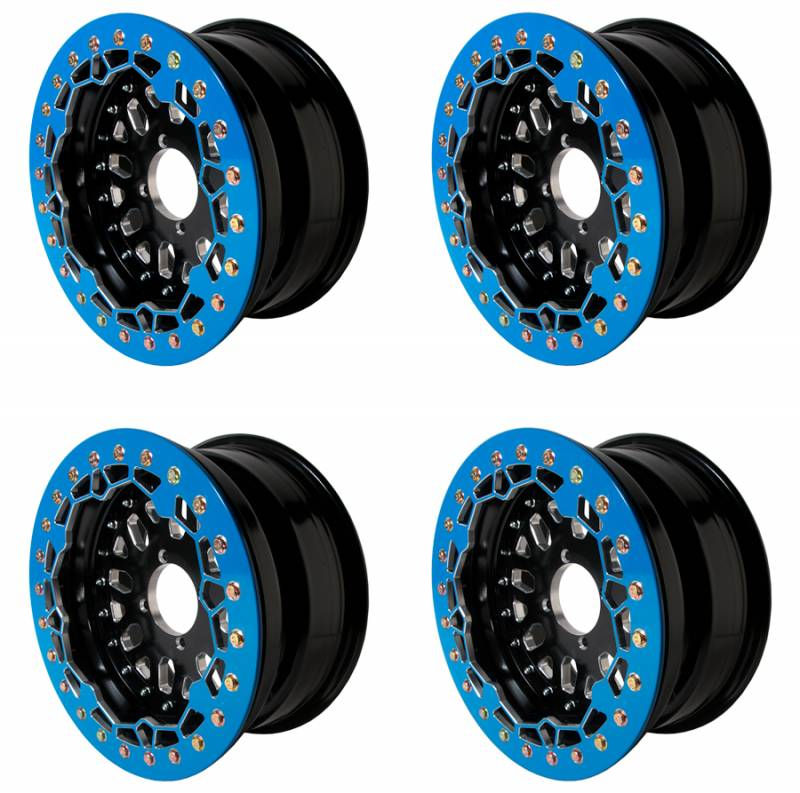

Alba Racing Baja Crusher Billet Beadlock Wheels

PriceFrom $299.99
